Introduction to EDR

Endpoint Detection and Response (EDR) is a security solution designed to monitor, detect, and respond to advanced threats at the endpoint level. As a SOC analyst, it is essential for you to understand how the EDR works since it is a widely adopted solution in organizations to protect their endpoints. In this room, we will see how an EDR differs from a traditional antivirus and what data it collects from the endpoints. We will also discuss the detection and response capabilities it provides.

Learning Objectives

• Understand the basics of EDR and how it works
• Differentiate EDR from traditional Antivirus solutions
• Examine the architecture of an EDR solution
• Analyze the types of telemetry it collects from endpoints
• Understand the detection and response capabilities of an EDR
• Investigate a realistic alert in the EDR

Room Prerequisites

• Basic knowledge of different endpoints (Windows, Linux, Mac) and the common attacks on them
• Awareness of the role of the SOC team

The increase in the use of digital devices is undeniable. Most of the business's core functions rely on the use of these digital devices. Cyber threats, on the other hand, are also increasing day by day. To protect these devices, organizations implement several security measures, most of which are to protect the network on which they operate these digital devices. However, the fast adoption of Remote Work has exposed these devices as they are out of the perimeter protection deployed on the organization's network.

To ensure these endpoint devices are protected even out of the network, we need a security solution that guards all devices in different areas and is capable of fighting advanced threats. Endpoint Detection and Response (EDR) is a security solution that offers deep-level protection for endpoints. No matter where the endpoints are, the EDR will make sure they are monitored constantly and threats are detected.

Below are some of the EDR solutions in the market:

• CrowdStrike Falcon
• Symantec EDR
• SentinelOne EDR
• Microsoft Defender for Endpoint



Several other EDR solutions are available in the market. Their underlying architecture is mostly similar, but the features may vary. Let's take a look at the core features of an EDR. We will be using the screenshots from CrowdStrike Falcon EDR to demonstrate the core features of EDR.

Features of EDR

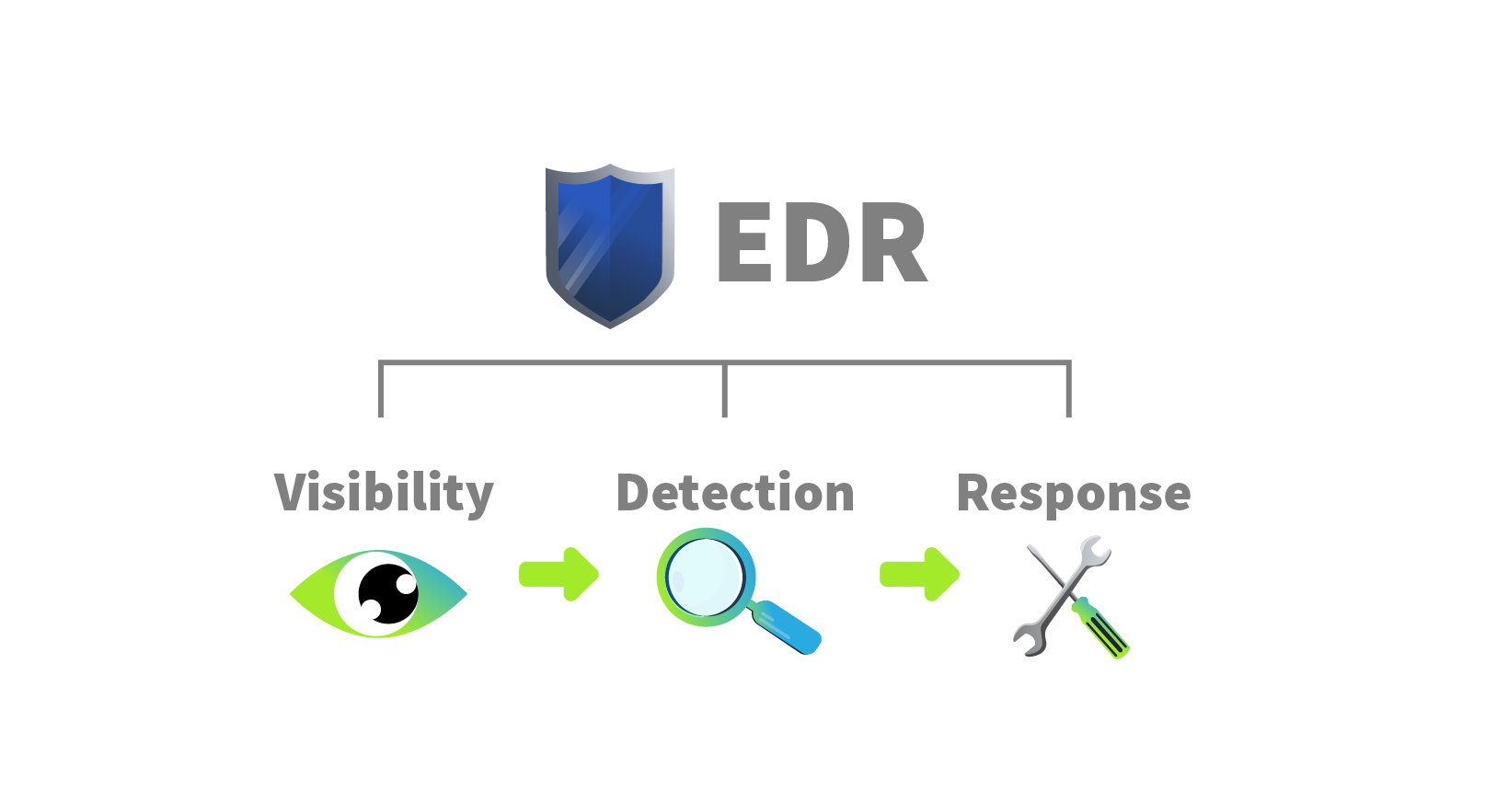

There are three main features of an EDR, which can also be referred to as the three pillars of an EDR solution.

Note: The screenshots used in this task were taken from CrowdStrike Falcon EDR when this room was created.

Visibility

A good analysis often depends on the available level of visibility of the activity. This is one of the features of EDR that makes it unique from other endpoint security solutions. The level of visibility EDR provides is impressive. It collects detailed data from the endpoints, which includes process modifications, registry modifications, file and folder modifications, user actions, and much more. It then presents this information in a very structured format to the analyst. The analyst can see the whole process tree with a complete activity timeline of the sequence of actions. The analyst can also access the historical data of any endpoint for threat hunting or any other purpose. Any detections in the EDR land with a whole context.

Process Modifications

Registry Modifications

File And Folder Modifications

User Actions

And Much More

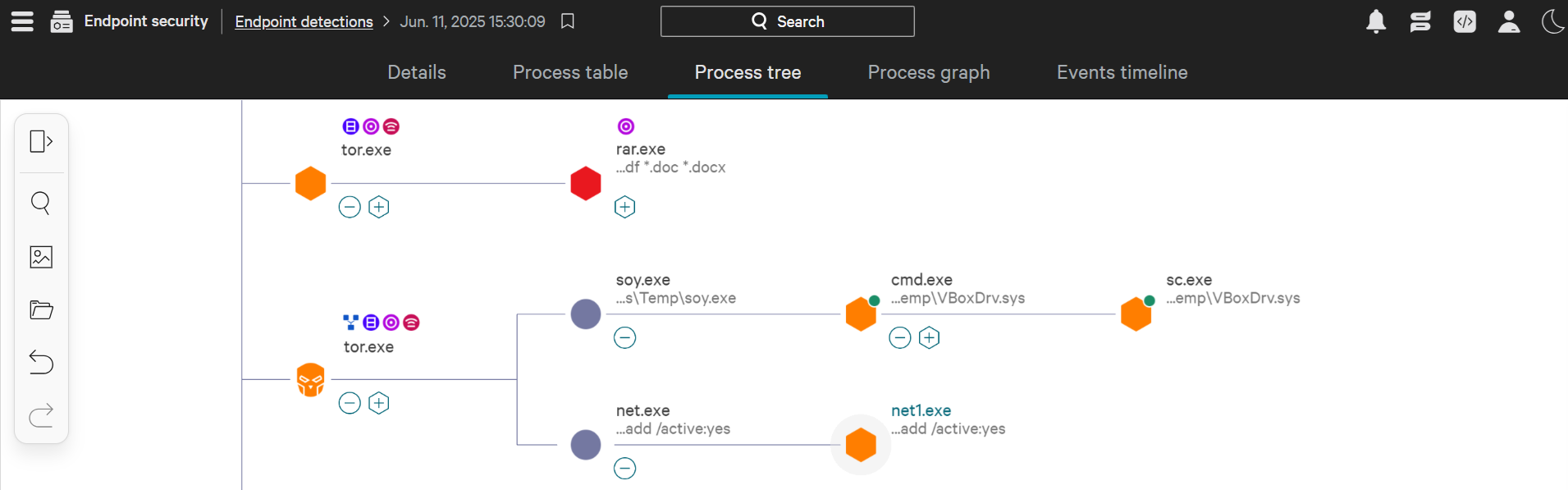

The following screenshot shows graphical representation of a process tree. We can see which processes were spawned on the endpoint. Each node represents a process. The lines connecting them represents their relationship. If we click on the + icon given with each process, we will be able to see all the network connections, registry changes, file changes etc. associated with that process.

Along with the process trees, there are many other features available in the EDRs which maximize the visibility.

Detection

The detection feature of EDR wins over traditional detection capabilities. It incorporates signature-based detections as well as behavior-based detections, such as unexpected user activities. With modern machine learning capabilities, it identifies any deviation from the baseline behavior and instantly flags it. It can also detect fileless malware that resides in memory. It also allows us to feed custom IOCs for threat detections.

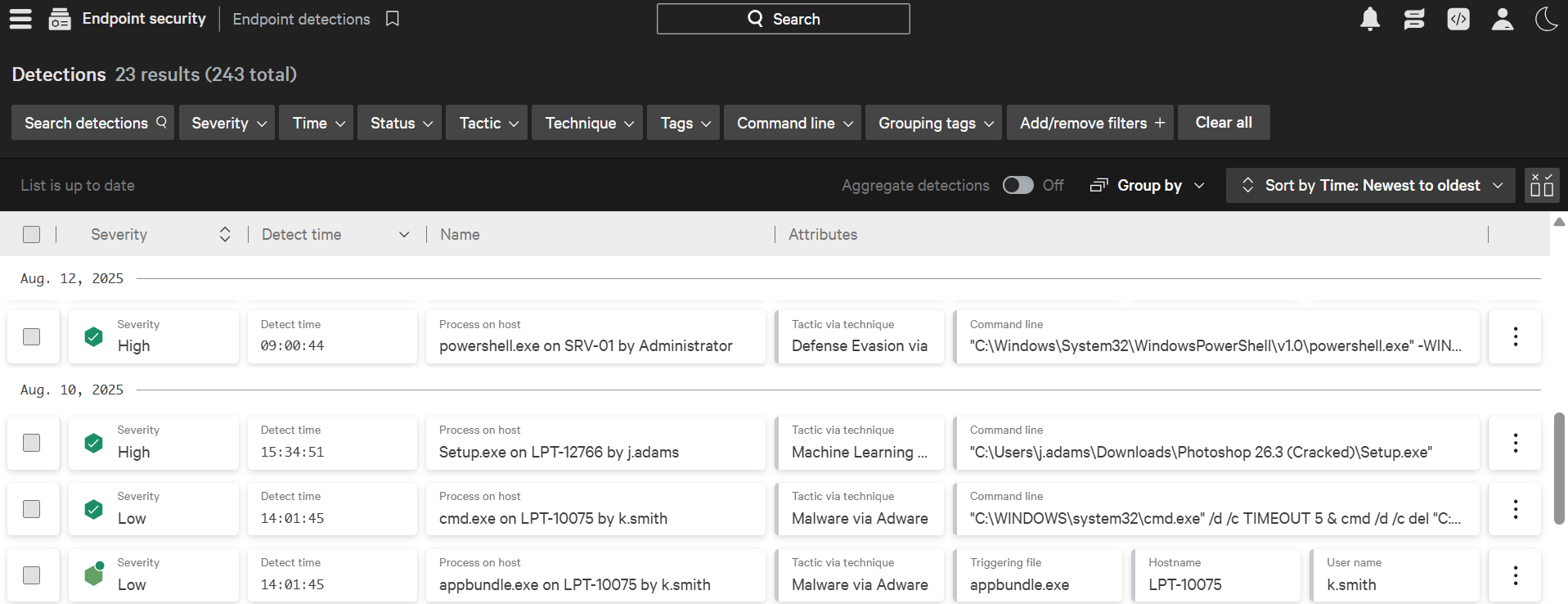

The following screenshot shows a dashboard of all the detections happening on the different endpoints. Each detection is represented by a row with different fields including the severity of the detection, time, triggering file, hostname, username, and more. The Tactic via Technique field maps the detection with MITRE. Any detection when clicked will show us rich details which helps a SOC analyst during the analysis.

Response

EDR also empowers analysts to take action on detected threats. These actions can be taken at any endpoint within the central EDR console. Imagine getting a detection on the EDR with full-fledged details on when, where, and what happened, and you have to opt for the best possible action for that detection. As an analyst, you may decide to isolate a complete endpoint, terminate a process, or quarantine some files. You can also connect to the host remotely and execute actions independently. You can do this all from within the EDR console.

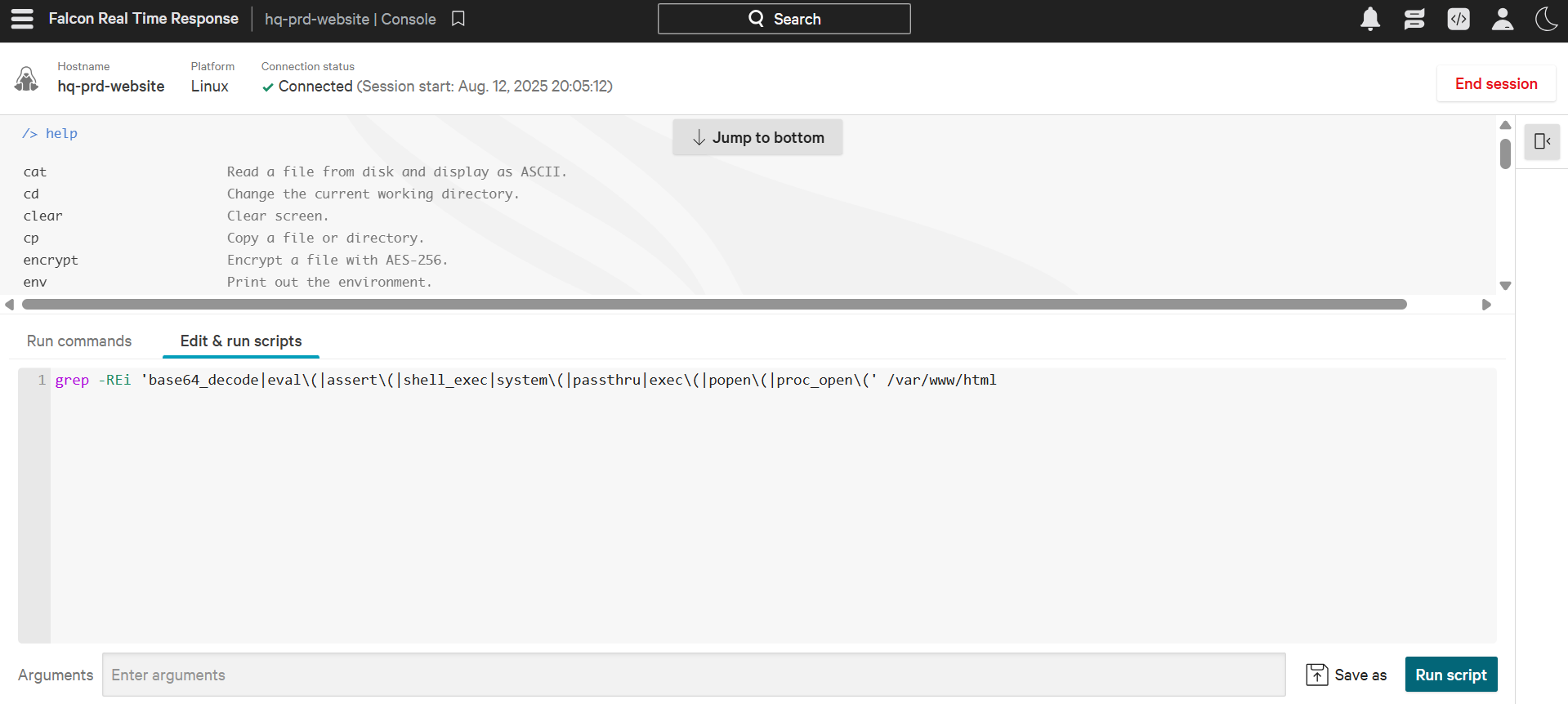

The following screenshot shows the actions available that can be taken on the host after connecting to it.

There are several other actions that the analyst can take during the investigation.

Note: In Task #6, we will be covering the Detection and Response capabilities of an EDR in more detail.

With advanced visibility, detection, and response, EDR becomes a very powerful tool. However, it's also important to remember that an EDR is a host-only security solution and does not detect network-level threats.

Before we proceed to the How behind the EDR's working, let's answer a very common question that comes to mind when we hear about the EDR solution.

Why do we need an EDR when we already have an Antivirus (AV) on the endpoints?

Both of these security solutions have the same motive of protecting the endpoint on which they are installed. However, both differ in the level of protection they provide. Let's assume an airport is an endpoint that needs protection. One layer of protection is to check the passports of people when they pass through immigration. The immigration check (AV) monitors incoming people and matches their passports with a list of known criminals in its database. If there is a match, the entry is blocked and caught.

Sounds like a smart protection, right?

But, what happens if somebody who has never been identified as a criminal in the past and has an innocent personality tries to come in? The immigration check will let them in. Now, what if this innocent person were a professional thief trained to evade basic security? The airport has an undetected threat inside!

This is where an EDR comes in.

An EDR in this analogy would be the security officers stationed inside the airport (endpoint). These security officers would constantly monitor the security cameras and motion sensors in the airport (endpoint). Compared to the immigration check (AV), the security officers (EDR) enhance the protection of the airport (endpoint) through CCTV monitoring and motion sensors. Even if somebody manages to evade the immigration check, the security officers will constantly be monitoring their actions, such as:

• Are they roaming close to restricted areas?
• Is their behaviour suspicious?
• Are they leaving their bags somewhere unattended?

The security officers can also take action if something does not feel right to them or alert the airport management with complete details of what happened.

The Antivirus (AV) may detect some basic threats, but to detect advanced threats that evade normal detections, we need an EDR. Unlike antivirus software's basic signature-based detection, it monitors and records the behaviors of the endpoint. An EDR also provides organization-wide visibility of any activity. For example, if a suspicious file is detected on one endpoint, the EDR will also check it across all the other endpoints.

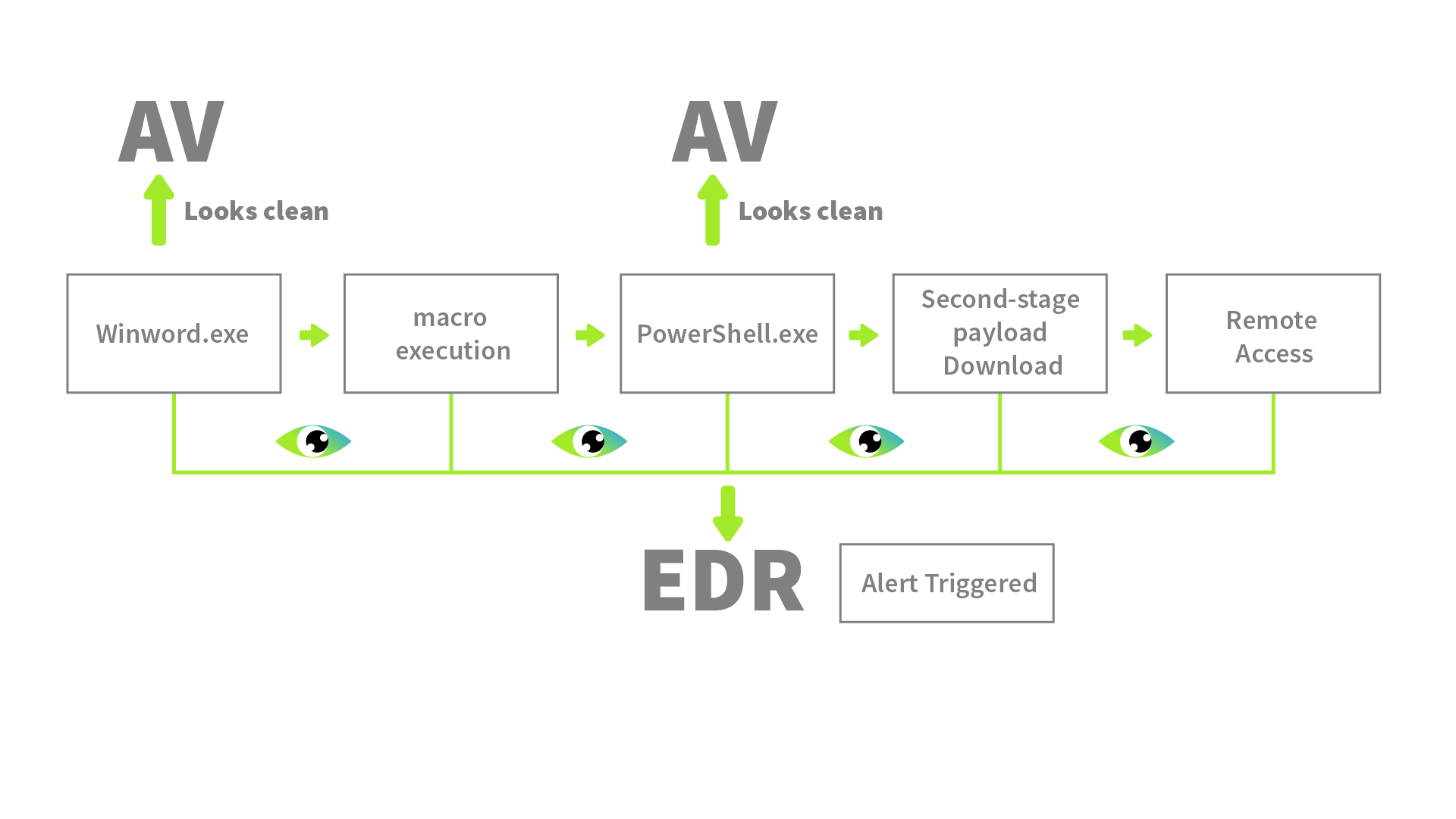

Let's examine an advanced malicious activity step by step on an endpoint and compare the response of an AV and EDR at each stage.

Scenario Breakdown

• Step #1: A user receives a phishing email with a Word document embedded with a malicious macro (VBA script)
• Step #2: The user downloads the document and opens it
• Step #3: The malicious macro is silently executed, and it spawns PowerShell
• Step #4: The malicious macro runs an obfuscated PowerShell command to download a sophisticated second-stage payload
• Step #5: The payload is injected into a legitimate svchost.exe
• Step #6: The attacker gains remote access to the system

Attack Steps	AV's Response	EDR's Response
Step #1	Does nothing if the downloaded file has no previous signature in the database	Logs the file download activity and monitors it
Step #2	Does nothing upon the opening of the document since winword.exe is a legitimate utility	Records the execution of winword.exe and keeps monitoring
Step #3	Does nothing if the executed macro has no previous signature	Detects and flags the macro execution due to the unusual parent-child relationship of winword.exe and PowerShell.exe processes
Step #4	Typically, AVs will not detect obfuscated PowerShell scripts	Flags the obfuscated script execution
Step #5	Will not flag malicious injection into svchost.exe since it does not monitor the memory injections	Detects Process Injection in svchost.exe
Step #6	Lacks Network Level Visibility	Flags the unexpected behaviour of svchost.exe, making an outbound connection
Final Action	May be marked as clean	Generates an alert with the full attack chain and enables the analyst to take actions from within the EDR

Note: Some modern AVs may have more enhanced visibility and detection. However, an EDR is ahead as it levels up the detection and response in an endpoint.

In the previous tasks, we saw how powerful an EDR is for an endpoint. However, do you know:

• How does an EDR manage to provide this much visibility of the endpoints?
• How can it detect advanced threats?
• How can a few clicks eradicate the threat from an endpoint?

This seems like magic. Let's try to understand it in a very simple way.

Agents

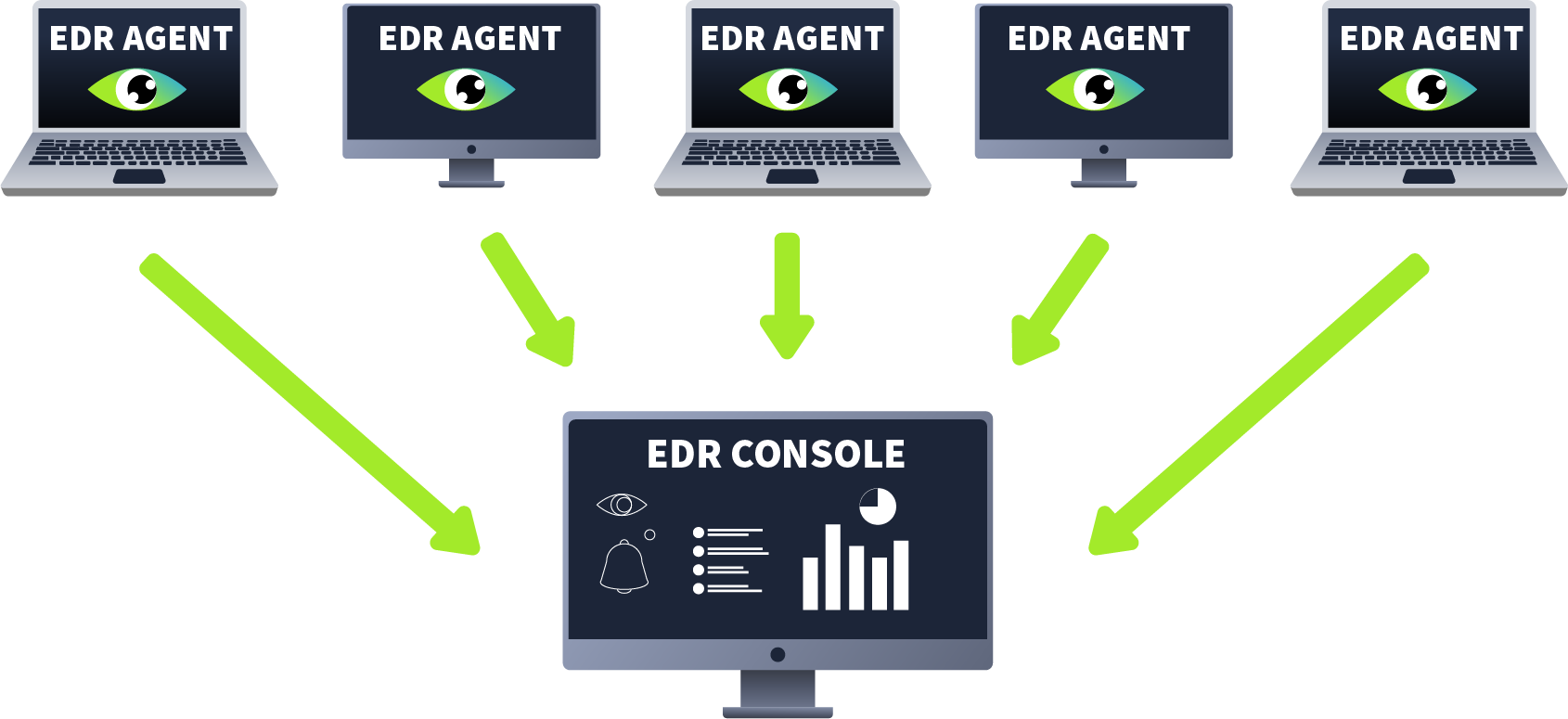

We can integrate multiple endpoints with our EDR and manage them through a centralized console. There are EDR agents that we have to deploy inside those endpoints. These agents are also sometimes referred to as sensors. They are the eyes and ears of the EDR. Their job is to sit at the endpoint and monitor all the activities. The information about these activities is sent in detail to the EDR central console in real time. The EDR agents can do some basic signature-based and behavior-based detections by themselves and send them to the EDR console, which triggers alerts.

EDR Console

All the detailed data sent by the EDR agents is correlated and analyzed through complex logic and machine learning algorithms. The threat intelligence information is matched with the collected data. The EDR is just like the brain connecting all the dots. These dots connect to form a detection, often called an alert.

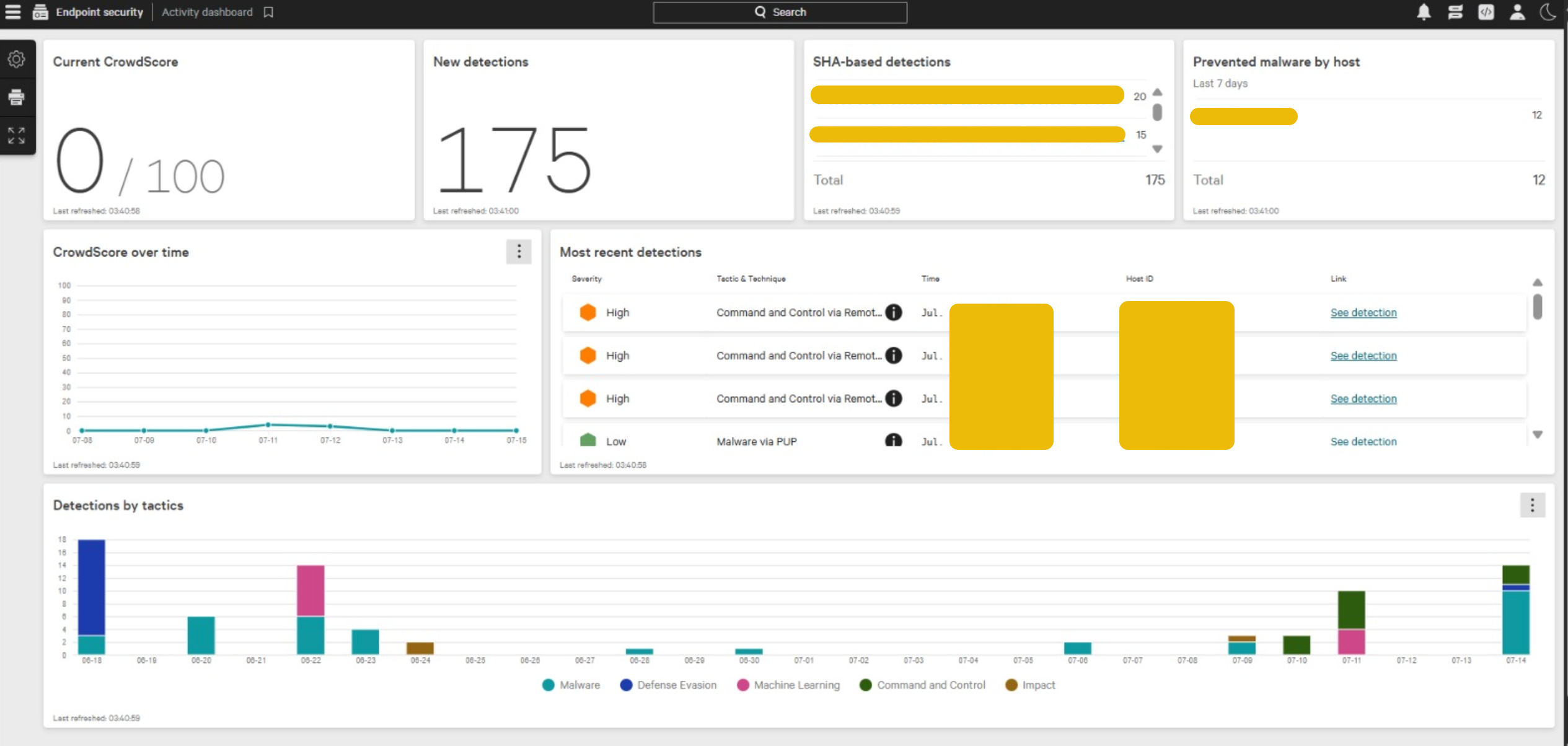

The following screenshot shows the dashboard of an EDR console. All the data from the endpoint agents is coming into this console, and the detections are happening here. This dashboard gives a holistic view of the current status of detections in all the endpoints.

What happens after Detection?

When a detection comes, it's a SOC analyst's responsibility to acknowledge the alert and prioritize it. The prioritization is made easy by the EDR itself. It gives severities to all the alerts (Critical, High, Medium, Low, Informational). The alert with the highest severity is investigated as a priority. For the investigation, once the alert is clicked, the analyst can see all the details of the detection. This includes any files executed, processes executed, network connection attempts, registry modifications, and much more. Based on the available data, the analyst's job is first to use their expertise to determine if the alert is a false positive or a true positive. In case of a true positive, the analyst can take actions from within the EDR console.

EDR with Other Tools

As a SOC Analyst, it is essential to understand that although a standalone EDR provides enough information to detect and respond to threats in an endpoint, it works alongside other security solutions to form a larger security ecosystem. Within a network, you will see Firewalls, DLPs, Email Security Gateways, IAMs, EDRs, and other security solutions protecting the different components of the network. To minimize the effort and maximize the efficiency, all these security solutions are integrated with a SIEM solution that becomes the central point of investigation for the analysts. We will also discuss the SIEM solution in detail in the upcoming rooms of this module.

What is Telemetry?

In the previous task, we learned about EDR agents, which collect different data from their endpoints and push it to the EDR console. This data is known as Telemetry. Telemetry is the black box of an endpoint with everything necessary for detection and investigation.

Collected Telemetry

Usually, many activities are going on in the endpoints, most of which are legitimate. It is often difficult to differentiate between regular and malicious activity. The more data is collected, the better judgments can be made. EDR collects detailed telemetry from the endpoints. Let's take a brief look at some of the telemetry that it collects:

• Process Executions and Terminations
  It keeps track of all the running and idle processes, which helps to identify suspicious child-parent process relationships, suspicious executables initiating a process, malware payload, etc.
• Network Connections
  All the endpoints' network connections are monitored, which helps identify any connection to a C2 server, unusual port usage, data exfiltration, or lateral movement within the network.
• Command Line Activity
  It captures all the commands executed on the endpoints in CMD, PowerShell, etc., which helps to identify malicious command execution, obfuscated PowerShell script executions, which are often missed by a traditional antivirus.
• Files and Folders Modifications
  Threat actors modify different files and folders during data staging, ransomware executions, and malicious file dropping. The EDR tracks this.
• Registry Modifications
  The registry is a goldmine of information about the configurations in a Windows system. There are many registry modifications that occur during a malicious activity, and most of these are monitored by the EDR.

EDR collects much more than this data from an endpoint. It uses complex logic and machine learning algorithms to assess the activities. Advanced threats keep most of their activities stealthy, using legitimate utilities during execution. Individually, their activities may seem harmless, but when observed through detailed telemetry, they tell a different story. This detailed telemetry not only helps the EDR detect advanced threats and make better judgments on the legitimacy of the activities, but it is also very helpful for the analysts during the investigations. The analysts can understand the full chain of events, identify the root cause, and reconstruct the attack timeline.

In this task, we will discuss the advanced detection techniques and the response mechanisms of an EDR.

Detection

Based on the telemetry received from the endpoints, some advanced detection techniques are applied to this data. Some of these techniques include:

Response

The next step after any detection is the response. EDR offers both automated and manual responses. You can make policies to block known malicious behaviors automatically. However, manual response gives you a wide range of response capabilities. Let's discuss some of them.

The Detection and Response capabilities of EDR solutions differ from those of traditional endpoint protection solutions. Modern EDRs are introducing more advanced detection techniques.

Scenario

You are a SOC analyst at TECH THM with access to the EDR console, having multiple medium and high-severity detections. Your task is to perform triage on each detection using the available information in the EDR and answer a series of questions related to these detections.

Click on the View Site button below to display the static site on the right side of the screen.

Alternatively, you can click on the EDR Dashboard in the URL section to display the static site in full screen.

Note: Acknowledgement and actions on the detections are outside the scope of this room. The focus would be solely on understanding the visibility of the detections available in the EDR.

Congratulations! We have learned one of the essential tools used in the Security Operations Center (SOC), Endpoint Detection and Response (EDR). As a SOC analyst, we now understand the basic architecture of EDR and its capabilities beyond Antivirus. We explored the detailed telemetry that an EDR provides. We also saw the powerful detection and response capabilities of EDR solutions. Lastly, we practiced investigating some detections on a simulated EDR.

This sets a strong baseline for working with essential security solutions. In the upcoming rooms of this module, we will explore some other security solutions that a SOC analyst works on in a Security Operations Center (SOC).
