Set up your virtual environment
In the previous room, Memory Analysis Introduction, we learnt about the vital nature of memory forensics in cyber security. We explored the structure of memory dumps, differentiated between RAM and disk forensics, and saw scenarios where memory analysis is essential.
Here, we shall begin looking at the practical aspects of memory forensics through tools, specifically Volatility.
Learning Objectives
- Getting familiar with the Volatility Framework
- Navigate and utilise basic Volatility commands and plugins
- Conduct forensic analysis to identify key artefacts such as running processes and loaded DLLs using Volatility
Prerequisites
Ready to learn about Volatility and memory analysis.
Volatility is an open-source memory forensics framework that is cross-platform, modular, and extensible. The framework has undergone various iterations over the years, with the current version being Volatility 3. This version is superior to its predecessors as it abandoned static OS profiling in favour of dynamic symbol resolution, supporting newer operating systems, memory layouts, and complete insight into the runtime state of the system.
Architectural Overview
Volatility 3 is made up of several key layers:
- Memory layers: These layers represent the hierarchy of address spaces, from raw memory to virtual address translations.
- Symbol tables: The tables enable kernel and process structures to be interpreted through OS-specific debugging symbols.
- Plugins: These are modular routines that leverage the underlying memory layers and symbol tables to extract artefacts of forensic interest. Later in the room, we shall look at some key plugins used.
System Requirements and Installation
Volatility 3 requires Python 3.6 or later to run. Additionally, it benefits from various libraries such as pefile
, capstone
, and yara-python
that allow us to process portable executables, perform memory disassembly, and use YARA rules in our analysis, respectively. The terminal output below shows how to install Volatility by cloning the GitHub repository and running it directly from the source.
Volatility has already been installed on the machine attached to this room and can be accessed under the Desktop/volatility3
directory.
ubuntu@tryhackme:~/Desktop$ git clone https://github.com/volatilityfoundation/volatility3.git
ubuntu@tryhackme:~/Desktop$ cd volatility3
ubuntu@tryhackme:~/Desktop/volatility3$ python3 vol.py -h
Volatility 3 Framework 2.26.2
usage: vol.py [-h] [-c CONFIG] [--parallelism [{processes,threads,off}]] [-e EXTEND] [-p PLUGIN_DIRS] [-s SYMBOL_DIRS] [-v] [-l LOG] [-o OUTPUT_DIR] [-q]
[-r RENDERER] [-f FILE] [--write-config] [--save-config SAVE_CONFIG] [--clear-cache] [--cache-path CACHE_PATH] [--offline | -u URL]
[--filters FILTERS] [--hide-columns [HIDE_COLUMNS ...]] [--single-location SINGLE_LOCATION] [--stackers [STACKERS ...]]
[--single-swap-locations [SINGLE_SWAP_LOCATIONS ...]]
PLUGIN ...
An open-source memory forensics framework
options:
-h, --help Show this help message and exit, for specific plugin options use 'vol.py --help'
-c CONFIG, --config CONFIG
Load the configuration from a json file
------TRUNCATED--------
Read the above and navigate to the Volatility directory.
Memory Acquisition Methodologies
Memory acquisition is a foundational step in forensics that must be performed in a manner that ensures we maintain the integrity of evidence. The process and the deployment environment used vary from one OS to another.
For Windows systems, the following tools can be used to conduct memory acquisition:
- DumpIt: captures a full physical memory image on 32/64‑bit Windows and automatically hashes the output.
- WinPmem: Open‑source driver‑based tool that acquires RAM in RAW/ELF formats and embeds acquisition metadata for chain‑of‑custody.
- Magnet RAM Capture: GUI‑driven collector that snapshots volatile memory on live Windows hosts while minimising footprint.
- FTK Imager: The most common commercial tool that acquires memory and selected logical artefacts alongside disk imaging functions.
For Linux and macOS systems, we can employ the services of the following tools:
- AVML: Lightweight Microsoft CLI utility that dumps Linux memory to a compressed ELF file without requiring a kernel module.
- LiME: Loadable Kernel Module for Linux that captures full volatile memory over disk or network and supports ARM/x86 architectures.
- OSXPmem: macOS‑specific fork of Pmem that creates raw memory images on Intel‑based Macs for subsequent Volatility analysis.
Extracting memory from virtual environments can be done by collecting the virtual memory file from the host machine's drive. Depending on the hypervisor in use, the output file will likely differ, and you would likely encounter the following examples:
- VMware -
.vmem
- Hyper-V -
.bin
- Parallels -
.mem
- VirtualBox -
.sav
It is worth noting that this is a partial memory file.
Memory Analysis
To have a holistic and hands-on understanding of Volatility, we shall investigate a forensic case and use it to learn about the tool's inner workings. The files for the analysis are found under the Desktop/Investigations
directory.
Case 001
Your SOC has informed you that they have gathered a memory dump from a quarantined endpoint thought to have been compromised by a banking trojan masquerading as an Adobe document. Your job is to use your knowledge of threat intelligence and reverse engineering to perform memory forensics on the infected host.
You have been informed of a suspicious IP in connection with the file Investigation-1.vmem
that could be helpful: 41.168.5.140
.
Plugins
Volatility uses plugins to request data to carry out analysis. Some of the most commonly used plugins include:
windows.info
linux.info
pslist
pstree
Let us look at these plugins, extracting information from our memory file. First, we can begin by obtaining operating system details from the image. In previous versions of Volatility, this information was identified as OS profiles and was extracted using the plugin imageinfo
. However, OS profiles have been deprecated in the new version, and now we have the individual information plugins.
Given that our memory file was obtained from a Windows VM running on VMware, we can extract details about its profile with the command below:
ubuntu@tryhackme:~/Desktop/volatility3$ python3 vol.py -f ~/Desktop/Investigations/Investigation-1.vmem windows.info
Volatility 3 Framework 2.26.2
WARNING volatility3.framework.layers.vmware: No metadata file found alongside VMEM file. A VMSS or VMSN file may be required to correctly process a VMEM file. These should be placed in the same directory with the same file name, e.g. Investigation-1.vmem and Investigation-1.vmss.
Progress: 100.00 PDB scanning finished
Variable Value
Kernel Base 0x804d7000
DTB 0x2fe000
Symbols file:///home/ubuntu/Desktop/volatility3/volatility3/symbols/windows/ntkrnlpa.pdb/30B5FB31AE7E4ACAABA750AA241FF331-1.json.xz
We can extract the system version, architecture, symbol tables, and available memory layers from the details.
What is the build version of the host machine in Case 001?
At what time was the memory file acquired in Case 001?
When we want to analyse details on processes and network connections from our memory file, Volatility supports different plugins, each with varying techniques used. Not all plugins mentioned here will produce a result from the memory file, as the capture may not have included processes or services that the plugins would enumerate.
Active Process Enumeration
The most basic way of listing processes is by using pslist
. This plugin enumerates active processes from the doubly-linked list that keeps track of processes in memory, equivalent to the process list in the task manager. The output from this plugin will include all current and terminated processes and their exit times.
ubuntu@tryhackme:~/Desktop/volatility3$ python3 vol.py -f ~/Desktop/Investigations/Investigation-1.vmem windows.pslist
Hidden Process Enumeration
Some malware, typically rootkits, will, in an attempt to hide their processes, unlink themselves from the list. By unlinking themselves from the list, you will no longer see their processes when using pslist
. To combat this evasion technique, we can use psscan
. This technique of listing processes will locate processes by finding data structures that match _EPROCESS
. While this technique can help with evasion countermeasures, it can also result in false positives; therefore, we must be careful.
ubuntu@tryhackme:~/Desktop/volatility3$ python3 vol.py -f ~/Desktop/Investigations/Investigation-1.vmem windows.psscan
Process Hierarchy Enumeration
The third process plugin, pstree
, does not offer any other kind of special techniques to help identify evasion like the last two plugins. However, this plugin will list all processes based on their parent process ID, using the same methods as pslist
. This can be useful for an analyst to get a complete story of the processes and what may have occurred at the extraction time.
ubuntu@tryhackme:~/Desktop/volatility3$ python3 vol.py -f ~/Desktop/Investigations/Investigation-1.vmem windows.pstree
File, Registry, and Thread Enumeration
Inspecting files and the registry is also vital during a memory forensic investigation. We can use the plugin handles
to look into the details and handles of files and threads from a host.
ubuntu@tryhackme:~/Desktop/volatility3$ python3 vol.py -f ~/Desktop/Investigations/Investigation-1.vmem windows.handles
Network Connection Enumeration
Now that we know how to identify processes, we also need to have a way to identify the network connections present at the time of extraction on the host machine. The netstat
will attempt to identify all memory structures with a network connection.
ubuntu@tryhackme:~/Desktop/volatility3$ python3 vol.py -f ~/Desktop/Investigations/Investigation-1.vmem windows.netstat
It is worth noting that this command in the current state of Volatility 3 can be very unstable, particularly around old Windows builds. To combat this, you can utilise other tools like bulk_extractor to extract a PCAP file from the memory file. Sometimes, this is preferred in network connections that you cannot identify from Volatility alone.
TCP/UDP Socket Enumeration
We can also identify network sockets and their linked processes from a memory file. To do this, we can use the plugin netscan
. This will recover active and closed TCP/UDP connections, associated process IDs, local and remote ports, and IPs using memory pool scanning.
ubuntu@tryhackme:~/Desktop/volatility3$ python3 vol.py -f ~/Desktop/Investigations/Investigation-1.vmem windows.netscan
DLL Enumeration
The last plugin we will cover is dlllist
. This plugin will list all DLLs associated with processes at extraction time. This can be especially useful once you have analysed further and filtered the output to a specific DLL that might indicate a specific type of malware you believe to be on the system.
ubuntu@tryhackme:~/Desktop/volatility3$ python3 vol.py -f ~/Desktop/Investigations/Investigation-1.vmem windows.dlllist
What is the parent process of this process in Case 001?
What is the PID of the parent process?
How many DLL files are used by the Adobe process that are outside the system32
directory?
What is the name of the one KeyedEvent associated with the process's handles?
Advanced threats can execute solely in memory, avoiding disk artefacts. Volatility offers many plugins that can aid in your hunting and detection capabilities when hunting for injected code and malware, as well as applying custom detection rules via YARA.
Before going through this section, it is recommended that you have a basic understanding of how evasion techniques and various malware techniques are employed by adversaries, as well as how to hunt and detect them.
Malware Analysis
The first plugin we will discuss, which is one of the most useful when hunting for code injection, is malfind
. This plugin will attempt to detect injected processes and their PIDs along with the offset address and the infected area's Hex, Ascii, and Disassembly views. The plugin works by scanning the heap and identifying processes that have the executable bit set RWE or RX and/or no memory-mapped file on disk (file-less malware).

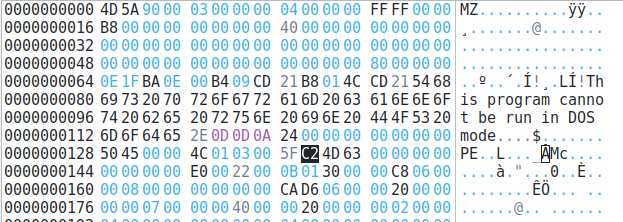

Based on what malfind
identifies, the injected area will change. An MZ header is an indicator of a Windows executable file. The injected area could also be directed towards shellcode, which requires further analysis.
ubuntu@tryhackme:~/Desktop/volatility3$ python3 vol.py -f ~/Desktop/Investigations/Investigation-1.vmem windows.malfind
Another helpful plugin is vadinfo
. This displays detailed information about virtual memory descriptors, which is useful when manually investigating suspicious memory regions and heap allocations.
ubuntu@tryhackme:~/Desktop/volatility3$ python3 vol.py -f ~/Desktop/Investigations/Investigation-1.vmem windows.vadinfo
What processes in the Case 001 memory file contain a header that points to a Windows executable file? (Answer: process1,process2)
Forensic analysts must be equipped to detect manipulation deep within the operating system when dealing with sophisticated threats such as kernel-mode rootkits. Rootkits are designed to conceal processes, files, drivers, and their presence by modifying kernel structures. This section focuses on a structured and practical exploration of these advanced evasion techniques, particularly within the Windows operating system, using Volatility 3.
Advanced adversaries often employ hooking—a technique that allows malicious software to intercept and potentially redirect system-level functions for evasion or persistence. Hooks are not inherently malicious; antivirus and debugging tools also use them legitimately. The analyst’s responsibility is to identify whether the presence of a hook aligns with expected system behaviour or represents malicious interference.
One of the most common hooking strategies is the System Service Descriptor Table (SSDT) hooks. These hooks are used to modify kernel system call table entries. They are prevalent in kernel-mode malware, with Volatility providing a corresponding plugin for analysis.
SSDT Hook Detection
The Windows kernel uses the System Service Descriptor Table (SSDT) to resolve addresses for system calls. Rootkits often overwrite SSDT entries to redirect legitimate system calls (e.g., NtCreateFile
) to their malicious counterparts.
Volatility 3’s windows.ssdt
plugin enables analysts to inspect this table for any irregularities.
ubuntu@tryhackme:~/Desktop/volatility3$ python3 vol.py -f ~/Desktop/Investigations/Investigation-1.vmem windows.ssdt
Recommendation: Perform SSDT inspection after discovering suspicious kernel modules or abnormal process behaviour.
Kernel Module Enumeration
The windows.modules
plugin lists drivers and kernel modules currently loaded into memory. Each entry includes metadata such as base address, size, and file path.
ubuntu@tryhackme:~/Desktop/volatility3$ python3 vol.py -f ~/Desktop/Investigations/Investigation-1.vmem windows.modules
Driver Scanning
While windows.modules
lists known drivers, it can miss hidden or unlinked ones. The windows.driverscan
plugin scans raw memory for DRIVER_OBJECT structures that may have been unlinked from standard lists.
ubuntu@tryhackme:~/Desktop/volatility3$ python3 vol.py -f ~/Desktop/Investigations/Investigation-1.vmem windows.driverscan
Tip: Use this plugin if you suspect DKOM (Direct Kernel Object Manipulation) or rootkit behaviour.
What is the address for the NtCreateFile
system call?
Case 002
You have been informed that your corporation has been hit with a chain of ransomware that has been affecting corporations internationally. Your team has already recovered from the attack through backups. Your job is to perform post-incident analysis and identify which actors were at play and what occurred on your systems. You have received a raw memory dump from your team to begin your analysis.
The memory file is located in ~/Desktop/Investigations/Investigation-2.raw
.
What suspicious process is running at PID 740?
What is the full path of the suspicious binary in PID 740?
What is the parent process of PID 740?
From our current information, what malware is present on the system?
What plugin could be used to identify all files loaded from the malware working directory?
We have only covered a very thin layer of memory forensics with Volatility, which can go much deeper when analysing the Windows, Mac, and Linux architectures. If you're looking for a deep dive into memory forensics, I suggest reading The Art of Memory Forensics.
Additionally, the following is a list of worthy plugin mentions that you can be aware of and read more on:
windows.callbacks
: Malware may register malicious callbacks for process creation, image loading, or thread creation. We can use this plugin to inspect callback functions for unknown driver associations or non-standard modules.windows.driverirp
: This plugin examines IRP (I/O Request Packet) dispatch tables of drivers. Suspicious drivers may register no IRP functions or point to non-driver memory.windows.modscan
: This plugin scans for loaded kernel modules without relying on linked lists. It can be used to uncover stealth drivers that evade bothmodules
anddriverscan
.windows.moddump
: This plugin allows analysts to extract suspicious drivers or modules from memory for static analysis. Further investigation with tools such as Ghidra or IDA can be done to reverse engineer dumped modules.windows.memmap
: This plugin can perform deeper analysis of injected code or memory artefacts, to extract memory regions from specific processes.yarascan
: This plugin will search for strings, patterns, and compound rules against a rule set by using a YARA file as an argument or listing rules within the command line.
In the next room, Memory Acquisition, we will cover memory acquisition in detail, covering all the necessary techniques and approaches.
Read the above and continue learning!
