Introduction

Hosted Hypervisors, also known as Type 2 Hypervisors, are a form of virtualization technology that operates on top of an existing operating system rather than directly interfacing with the underlying hardware. This setup allows them to manage lab machines within the context of the host OS.

While Hosted Hypervisors are not as common an area for investigations as their server counterparts, there are situations where investigations are required on either the host containing the Hypervisor or a VM running on the target computer.

In this room, we'll learn the foundations of identifying Hypervisors on a system, and where to find evidence of malicious behavior or any investigation we are required to perform. This room uses the Windows OS as the base system, but some examples and use cases described may apply to other OS.

Learning Objectives

• Detect the presence of a Hypervisor on a Host
• Analyze a VirtualBox-hosted Hypervisor
• Analyze a VMware-hosted Hypervisor

Caveats

• The Hyper-V Hypervisor is intentionally left out of this room since it will be covered separately
• This room focuses on Hypervisor investigation, not VM investigation, which is covered separately

Prerequisites

• Volatility
• Hypervisors Internals

For the following learning tasks in this room, we will use a VM to aid in your learning. Start the attached machine in this task by clicking the Start Lab Machine

Alternatively, you can use RDP to access the VM for this room with the following credentials:

Username	Administrator
Password	Hypervisors123
IP	MACHINE_IP

Hypervisors and Network Components

If we have local access to the target we are investigating, we can detect the presence of Hypervisors like VMware Workstation or VirtualBox by looking for signs that these programs are currently installed. Additionally, we can search for traces or remnants left behind from previous installations, even if the Hypervisors have been deleted or removed from the system.

Let's explore how to identify a Hypervisor installation by examining the network interfaces. This approach can be effective not only when you have direct access to the lab machine but also when you are working with a memory dump of the host system.

Sometimes, VMs can be used to hide suspicious activities or exploited by threat actors to target specific subjects who will use a VM to run malicious code.

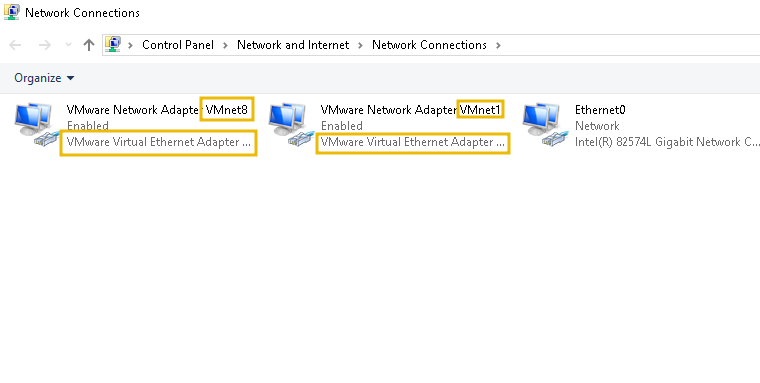

The same applies to VMware workstations; we can observe interfaces present on a host, as displayed below.

If we prefer the command line, or we don't have access to the Graphical Interface, we can use CMD and the command ipconfig

												user@tryhackme$ get-netadapter

Ethernet 4                VirtualBox Host-Only Ethernet Adapter        10 Up           0A-00-27-00-00-0A         1 Gbps
Ethernet                  AWS PV Network Device #0                      7 Up           02-11-B6-D2-7E-B3         1 Gbps
VMware Network Adapte...8 VMware Virtual Ethernet Adapter for ...       6 Up           00-50-56-C0-00-08       100 Mbps
VMware Network Adapte...1 VMware Virtual Ethernet Adapter for ...       2 Up           00-50-56-C0-00-01       100 Mbps


Investigating the Hypervisor interfaces can be very helpful if we want to detect or investigate suspicious activities coming from or going to a VM. Interfaces in Hypervisors, depending on the vendor, have three ways to route network traffic:

• NAT: Traffic will use NAT to translate traffic from the VM going to the network before using the host interface
• Host-only: Traffic will only be routed internally on the Hypervisor
• Bridged: Traffic will be routed with no translation to the host interface

Considering the above, if we have NAT traffic, we could use Wireshark to capture traffic from the interface and separate it from the host traffic. This also applies to a host-only and bridged interface, meaning we could detect traffic between VMs that will not be sent to the main interface.

The above will require filtering traffic from the VM; we can do that by using the MAC address, which, if it's not modified, will show the values according to each vendor OUI. For example, VirtualBox uses MAC addresses that start with 08:00:27

and  0A-00-27

, while VMware addresses start with 00:50:56

.

Hypervisors in Memory

Another case to consider is when we have a memory dump from a host and, during our investigation, we want to know if there's a Hypervisor present or VM traffic in the dump. We can use volatility to inspect the memory dump.

When dealing with a memory dump, we can spot the process of a Hypervisor, such as a VMware workstation Hypervisor, by examining the process. The output of the plugin windows.pstree

, a plugin for listing processes in a tree based on their parent process ID, can reveal its presence.

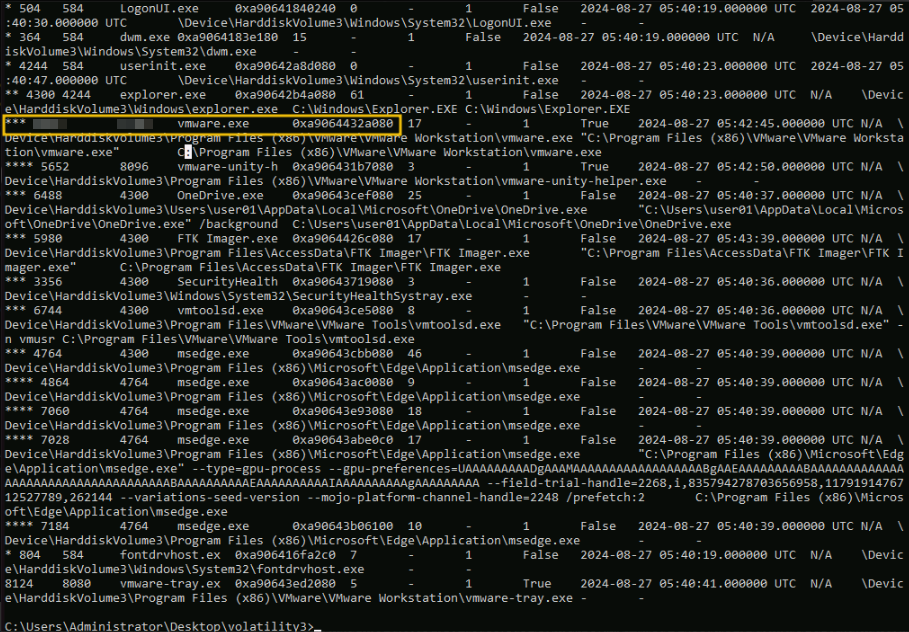

We can observe that the process vmware.exe

is present, indicating that VMware was running when the memory dump was taken (in the case of VirtualBox, the process name will be VBoxSVC.exe

). This does not reveal if a VM was active at that moment but can tell us about the presence of a Hypervisor, as shown in the screenshot below, by navigating to the C:\Users\Administrator\Desktop\Volatility3

directory and executing the command:

python vol.py -f ..\memdump.mem windows.pstree

Note: Since the output can be difficult to read, you can use the  >

 switch to redirect the output to a file we can later open in something handy like a text editor. Running volatility for the first time may take about 5 minutes to finish executing.

Inspecting the network activity is one way to check if a VM running on a Hypervisor was active when the dump was created. When a machine is browsing or communicating outside the VM, we can see that traffic on the memory dump. If the machine uses NAT (Network Address Translation), we'll observe that communication comes from the process vmnat.exe

 (In VirtualBox, this is handled by the process VirtualBoxVM.exe

). Using the volatility plugin windows.netstat

will allow us to verify that, as shown below, using the command:



python vol.py -f ../memdump.mem windows.netstat

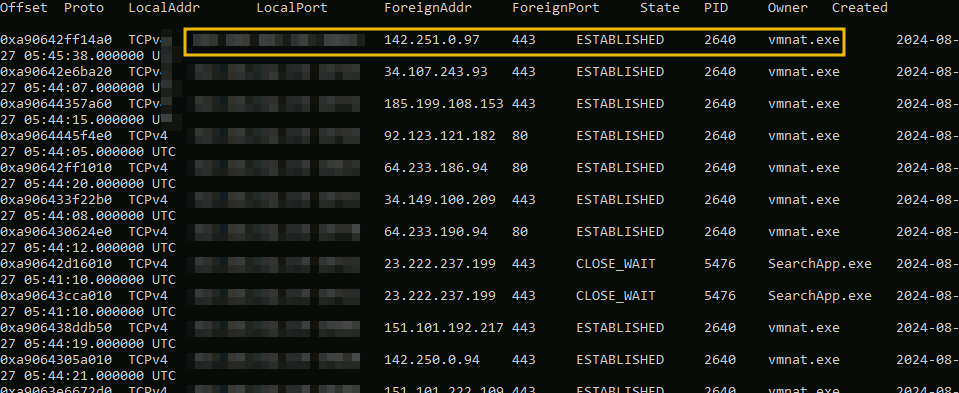

Above, we can observe the traffic from the VM to the network coming from the process vmnat.exe

, indicating that VM traffic is being routed out of the VM network.

To answer the questions above, we can follow the commands and steps for this task on the VM for this room.

Now, we'll discuss how to investigate a specific Hypervisor: The VirtualBox Hypervisor.

VirtualBox is an open-source software that enables us to create and manage multiple lab machines (VMs) on a single physical computer. This is particularly useful for testing, development, and running applications that require different OS environments. VirtualBox provides the flexibility to allocate resources like CPU, memory, and storage to each lab machine, ensuring that they operate independently and efficiently.

When trying to understand how a Hypervisor works, VirtualBox has the advantage of being open-source, so if we want to understand better how a Hypervisor works, we can take a look at the actual source code and build it. While this is out of the scope of this room, you can find instructions and the code here.

When it comes to VirtualBox, one of the best ways to handle logging and managing the VM is through the command-line interface provided by VirtualBox.

One of the tools is VBoxManage

There are several uses for this tool; for example, we could start a VM from the command line with a command similar to the one below.

Vboxmanage.exe startvm {name of the vm}

We could also enable debug logs if we want more verbosity with the following command.

VBoxManage.exe debugvm {name of the vm} log --all

We can find more information about VboxManage here.

VirtualBox Logs

We'll find logs and information about VirtualBox in two main places. The locations provided in this room are the locations used by VirtualBox by default. Still, they can be different if another path is chosen during installation, so we should always check for logs in other directories if we are unable to find them in their default location.

First, we can find general information about the Hypervisor in C:\Users\{username}\.VirtualBox

VirtualBox Memory Dump

Finally, we'll maybe want to create a memory dump of a VM in VirtualBox; for that, we can use VBoxManage to create the image. We can do it by using cmd.exe and navigate to C:\Program Files\Oracle\VirtualBox

Note: Volatility2 is not installed on the VM. The below is just an example.

VBoxManage.exe debugvm {name of the vm} dumpvmcore --filename={output file name}

After that, we need to use Volatility2; since this feature is not supported on Volatility3, the command to convert the core dump into a memory dump is the following:

python vol.py -f {output file name} imagecopy -O {new output file name}

This will create a memory dump of the machine for us to investigate the internal memory of it.

Note: It's also worth mentioning that you can inspect snapshots on the default directory. C:\Users\user01\VirtualBox VMs\secretvm\Snapshots

Now, let's take a look at how we can investigate when dealing with a VMware workstation Hypervisor.

VMware Workstation is also a Hypervisor, similar to VirtualBox. We can use it to create and manage lab machines, each operating as a separate computer with its own operating system and applications.

We can retrieve settings and configuration information in  C:\ProgramData\VMware\VMware Workstation. We'll usually find 3 files:

Note: The directory C:\ProgramData

Let's explore the content of vmautostart.xml, which is displayed below.

<!--
 This is a sample configuration file for the Lab Machine Autostart
 functionality. You may uncomment the below section and specify the path to
 the vmx files of those Lab Machine which you want to automatically
 power-on when the host machine starts or whenever the "VMware Autostart
 Service" is started.
 -->
<ConfigRoot>
    <AutoStartOrder>
    <!-- e id="0">
          <vmxpath>C:\Users\Administrator\Documents\Lab Machines\Windows10x64\Windows10x64.vmx</vmxpath>
          <startOrder>0</startOrder>
        </e>
        <e id="1">
          <vmxpath>C:\Users\Administrator\Documents\Lab Machines\VM2\VM2.vmx</vmxpath>
          <startOrder>0</startOrder>
    </e -->
    </AutoStartOrder>
</ConfigRoot>

In the above output, we can observe and reveal relevant information, such as the vmxpath filesystem path, where a VMware Workstation lab machine's files, including .vmx and .vmdk files, are stored. Specific logs for each VM can be found in the path of the lab machine location, in this case: C:\Users\Administrator\Documents\Lab Machines\{name of the vm}

VMware Workstation Logs

We can find the Hypervisor logs in Windows in the following location: C:\ProgramData\VMware\logs

								=== Verbose logging started: 8/22/2024  23:38:24  Build type: SHIP UNICODE 5.00.10011.00  Calling process: C:\Users\Administrator\Downloads\VMware-workstation-17.5.2-23775571.exe ===
MSI (c) (CC:40) [23:38:24:407]: Font created.  Charset: Req=0, Ret=0, Font: Req=MS Shell Dlg, Ret=MS Shell Dlg

MSI (c) (CC:40) [23:38:24:407]: Font created.  Charset: Req=0, Ret=0, Font: Req=MS Shell Dlg, Ret=MS Shell Dlg

MSI (c) (CC:B0) [23:38:24:423]: Resetting cached policy values
MSI (c) (CC:B0) [23:38:24:423]: Machine policy value 'Debug' is 0
MSI (c) (CC:B0) [23:38:24:423]: ******* RunEngine:
           ******* Product: C:\Program Files (x86)\Common Files\VMware\InstallerCache\{CA8F10D6-31EC-42F4-A94E-0061A5D183D1}.msi
           ******* Action:
           ******* CommandLine: **********
MSI (c) (CC:B0) [23:38:24:423]: Machine policy value 'DisableUserInstalls' is 0
MSI (c) (CC:B0) [23:38:24:423]: Note: 1: 1402 2: HKEY_CURRENT_USER\Software\Microsoft\Windows\CurrentVersion\Policies\Explorer 3: 2
MSI (c) (CC:B0) [23:38:24:423]: SOFTWARE RESTRICTION POLICY: Verifying package --> 'C:\Program Files (x86)\Common Files\VMware\InstallerCache\{CA8F10D6-31EC-42F4-A94E-0061A5D183D1}.msi' against software restriction policy
MSI (c) (CC:B0) [23:38:24:423]: SOFTWARE RESTRICTION POLICY: C:\Program Files (x86)\Common Files\VMware\InstallerCache\{CA8F10D6-31EC-42F4-A94E-0061A5D183D1}.msi has a digital signature
MSI (c) (CC:B0) [23:38:25:095]: SOFTWARE RESTRICTION POLICY: C:\Program Files (x86)\Common Files\VMware\InstallerCache\{CA8F10D6-31EC-42F4-A94E-0061A5D183D1}.msi is permitted to run at the 'unrestricted' authorization level.
MSI (c) (CC:B0) [23:38:25:095]: Cloaking enabled.
MSI (c) (CC:B0) [23:38:25:095]: Attempting to enable all disabled privileges before calling Install on Server
MSI (c) (CC:B0) [23:38:25:095]: End dialog not enabled
MSI (c) (CC:B0) [23:38:25:095]: Original package ==> C:\Program Files (x86)\Common Files\VMware\InstallerCache\{CA8F10D6-31EC-42F4-A94E-0061A5D183D1}.msi
MSI (c) (CC:B0) [23:38:25:095]: Package we're running from ==> C:\Program Files (x86)\Common Files\VMware\InstallerCache\{CA8F10D6-31EC-42F4-A94E-0061A5D183D1}.msi
MSI (c) (CC:B0) [23:38:25:142]: APPCOMPAT: Compatibility mode property overrides found.
MSI (c) (CC:B0) [23:38:25:158]: APPCOMPAT: looking for appcompat database entry with ProductCode '{CA8F10D6-31EC-42F4-A94E-0061A5D183D1}'.
MSI (c) (CC:B0) [23:38:25:158]: APPCOMPAT: no matching ProductCode found in database.
MSI (c) (CC:B0) [23:38:25:173]: MSCOREE not loaded loading copy from system32


Above, we can observe the logs from the Hypervisor; if we want to spot an attacker's exploit causing crashes or strange behavior, this would be one of the key places to look.

VMware VM Memory Dump

Finally, If we want to create a memory dump of a VM on a VMware workstation, we need to use or take a screenshot of the VM we want to dump the memory on, and then we need to use a tool to convert it to a memory dump. A commonly used tool for this is "vmss2core." The following command will allow us to dump the memory of a VM.

vmss2core -W {snampshot.vmss} {new name of dump.vmem}

Use what we learned in the previous tasks and answer the question by accessing the VM for this room. There's a memory dump exercise.mem

In this room, we learned the basics of Hypervisor investigation. We identified how to spot VM traffic on the host and extract valuable information from logs. We also practice our learning in a practical scenario that allows us to navigate through the host machine and the Hypervisor to be able to answer the questions.
